辊筒采用直径800mm高级不锈钢制成，其余转动轴由精拉无缝管套不锈钢管，精度高，防锈迹，延长整机使用寿命。

传动采用电机与变频器配套控制，可任间调节速度，使熨烫效果趋于完美。

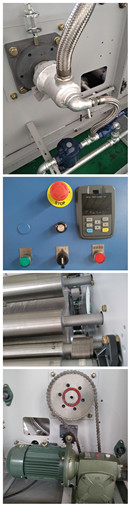

采用链轮传动装置，使机器传动合理，平稳。可根据能源供应情况和织物厚度，任意调节熨平速度，使布䓍平整，提高熨平质量。

直热式，有效熨烫面积利用率超过四分之三，更加节能。

配备电机过载保护、紧急停止制动等安全保护装置，使用更安全。

  Feature:

Working roller and axis are made of 304 Stainless

    Steel, and optimal design for efficient ironing.
Big main bearing and oil feeding system, long life

    spend and easy to maintain.
Pressure controller for well controlling of steam inlet.
Crystal baffle plate and sensitive limited switch in feeding area

   for safety operation.
Several emergency switch around the machine for safety operation.



  Specification:



Model	YZI2500Q	YZI2800Q	YZI3000Q	YZI3300Q
Roller	1	1	1	1
Heating	Steam	Steam	Steam	Steam
Roller(Dia)	Ø800mm	Ø800mm	Ø800mm	Ø800mm
Work Wide	2500mm	2800mm	3000mm	3300mm
Speed	0-10m/min	0-10m/min	0-10m/min	0-10m/min
Motor Power	1.5kw	1.5kw	1.5kw	1.5kw
Steam Inlet	40mm	40mm	40mm	40mm
Steam Cons	100kg/h	110kg/h	120kg/h	140kg/h
Steam Pressure	4-6 bar	4-6 bar	4-6 bar	4-6 bar
Water Outlet	20mm	20mm	20mm	20mm
Power Supply	380V/50Hz/3p	380V/50Hz/3p	380V/50Hz/3p	380V/50Hz/3p
Dimension	3700x1400x1420	4000x1400x1420	4200x1400x1420	4500x1400x1420
Weight	1600kg	1650kg	1700kg	1700kg
